R230 avr wiring diagram. 3222 - R230 field forcing 400V - IOA Diode. - Remove the ST4 jumper. About asap advanced service and parts established in 2002 asap.

Automatic voltage regulatorAVR SX460 SX440R230R448R449R438AS440SE350Regulador automtico de tensin. 16A - 250V alt. A V R Leroy Somer R230 A V R Installation And Maintenance.

Interconnection Diagram 120 208 V Nominal 3-phase 4-Wire Wye Connection Figure 2 Interconnection Diagram 120 240 V Nominal 1-phase 3-Wire Figure 3 FIELD Test Circuit Figure 4 If the step above cant make the AVR work please contact with us. Interconnection Diagram 120 208 V Nominal 3-phase 4-Wire Wye Connection Figure 2 Interconnection Diagram 120 240 V Nominal 1-phase 3-Wire Figure 3 FIELD Test Circuit Figure 4 If the step above cant make th e AVR work please contact with us. - Check whether the ST4 jumper or the.

Generator Spare Parts AVR Circuit Diagram R450 R230 R250 R438 R448 R449 US 2099 - 2899 Piece 1 year 1 year CERoHSISO9001 ChinaSource from Fuan Three Bees Electronic Technology Co Ltd. - Check that the ST3 frequency selection jumper is on the correct frequency setting. Adjusting Voltage on FG Wilson Generator R230 AVR.

Facebook china stamford sx460 use generator avr electric 30 kva circuit diagram sx440 r448 r230 installation service maintenance manual voltage regulator wiring when changing a from 480 ce certified genset permanent electron co ltd. Adjustment range 5. Complete service manual in digital format pdf file.

This area is a growing library of the schematics wiring diagrams and technical photos. 6 3973 en - 112006 b LEROY-SOMER 3 - INSTALLATION - COMMISSIONING 31 - Electrical checks on the AVR - Check that all connections have been made properly as shown in the attached wiring diagram. Your comment has not yet been posted.

SDMO Voltage Regulator 330410345 AVR. - Check whether the ST4 jumper or the remote adjustment potentiometer have been connected. FG Wilson Voltage Regulator 922-197 AVR.

3 - INSTALLATION - COMMISSIONING 31 - Electrical checks on the AVR - Check that all connections have been made properly as shown in the attached wiring diagram. Facebook China Stamford Sx460 Use Generator Avr Circuit Diagram. Wiring View and Schematics Diagram.

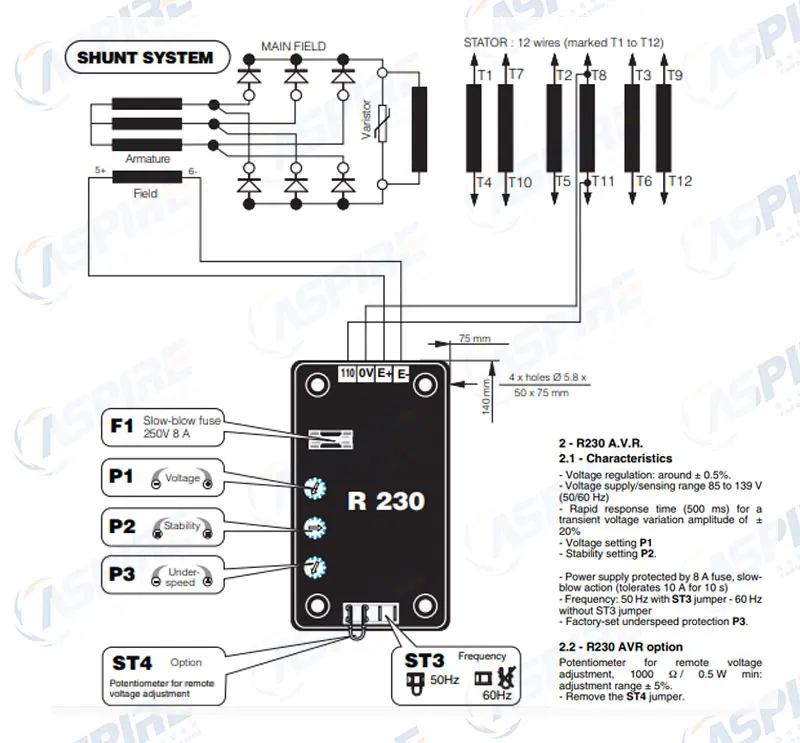

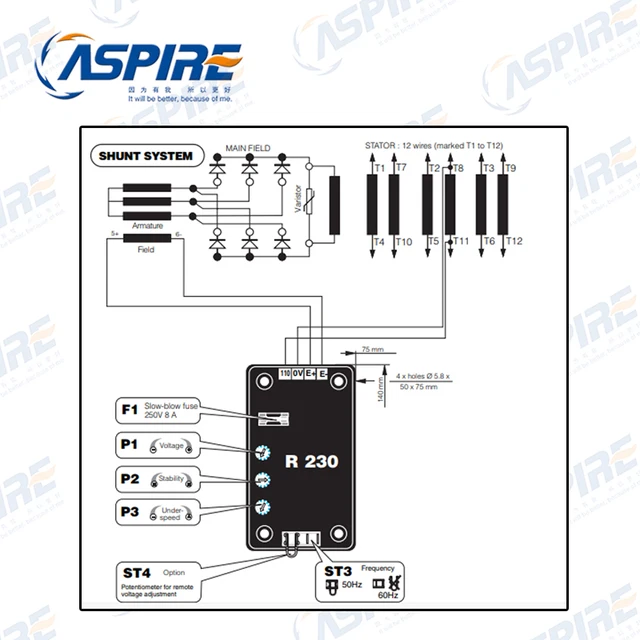

22 - R230 AVR option Potentiometer for remote voltage adjustment 1000 Q 05 W min. - Check that the ST3 frequency selection jumper is on the correct frequency setting. - Check that the position of the jumper corresponds to the operating frequency.

Sx460 Avr Wiring Diagram Author. Download pdf file with harman kardon avr230 service manual. Leroy Somer R448 Automatic Voltage Regulator Power Supply 1 5k Views.

In addition to regulating the generator voltage the AVR circuitry includes under speed and sensing loss protection to ensure safe reliable control of the generator. SAME EXACT AVR AS. Olympian Voltage Regulator 922-197 AVR.

Positive voltage build up. This is only a preview. Rocky Jamesh Published Date.

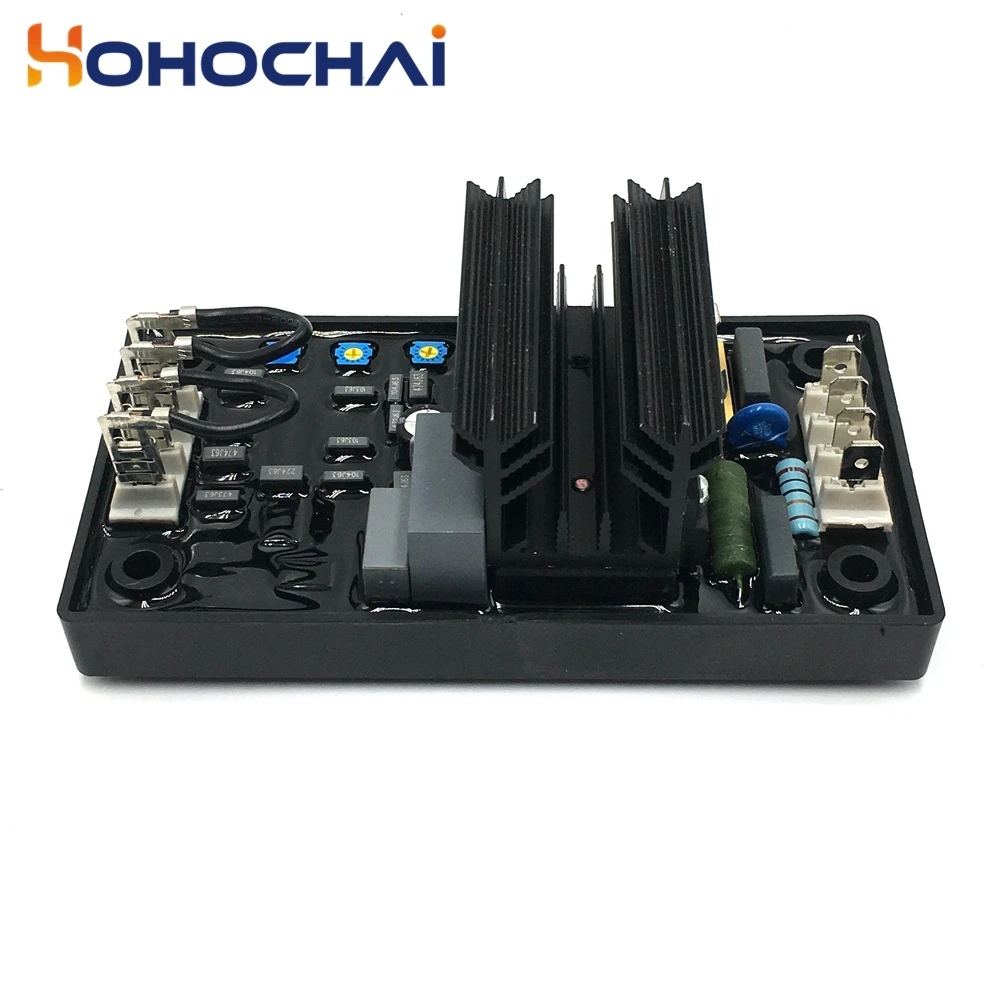

Visit our store today. 3221 - R230 field weakening SHUNT The exciter is switched off by disconnecting the AVR power supply 1 wire -O or 1 IOV. Leroy somer r230 a v r installation avr sx440 sx460 r448 stamford sel generator china 3 phase ac voltage r449 ea230 automatic regulator alternator brush.

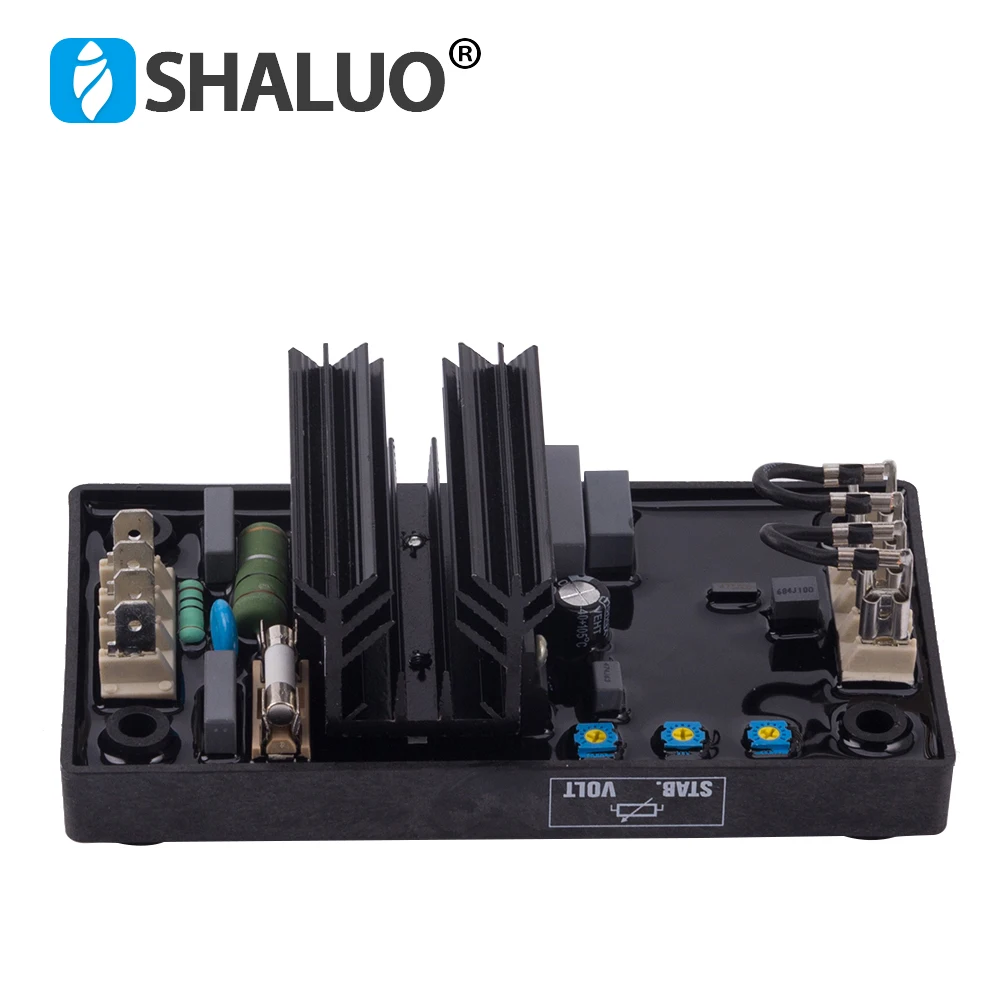

Leroy Somer R230 Use for reference only. Voltage supplysensing range 85 to 139 V 5060 Hz Rapid response time 500 ms for a transient voltage variation amplitude of 20 - Voltage. 31 - Electrical checks on the AVR - Check that all connections have been made properly as shown in the attached wiring diagram.

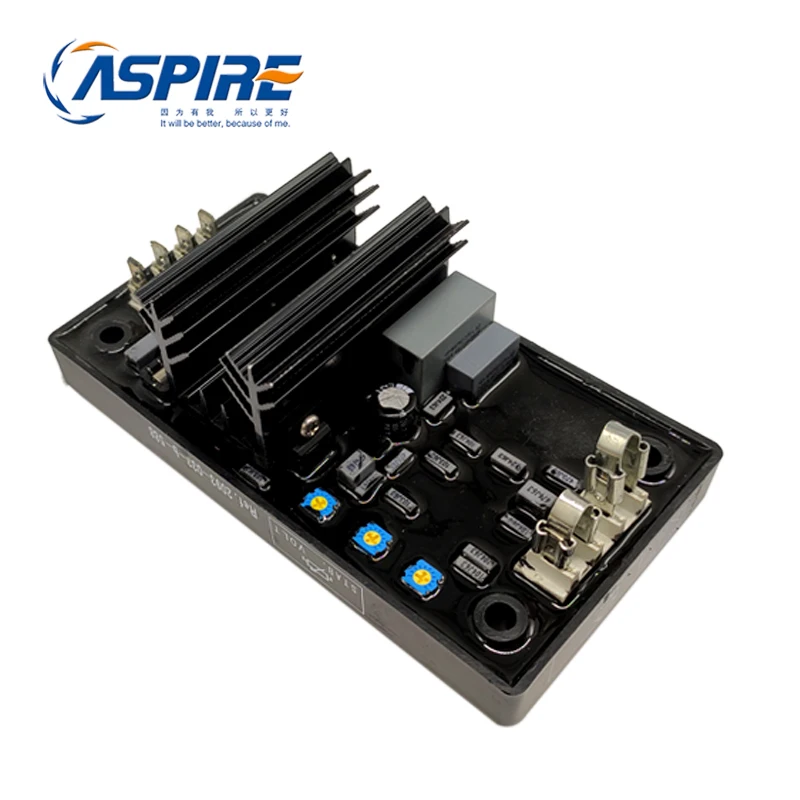

Diesel Generator AVR 30kw R230 Generator AVR Circuit Diagram is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator. Adjustment range 5. Not a genuine Leroy Somer product.

R438 Avr Wiring Diagram Amp Diagram Uc 2577 Schematic Circuit. R570u r 340 u. R230 Avr Wiring Diagram Posted by Margaret Byrd Posted on December 27 2019.

Lc motors voltage regulator three phase induction leroy somer 3 tefv installation users guide and maintenance manual alternators lsa poles shunt arep pmg pdf free bandsaw archives rhys goodwin s weblog ac motor lsp single 220 v 50 1 of alternator avr r450 r230 a r manualslib diagram as440 wiring full version hd quality aidiagram festivalillica it arduino Read More. 10 R230 Avr Wiring Diagram Pictures. Wiring diagram generator leroy somer.

Asalam-o-alyikumfriends in this video we will discuss about R230 auto voltage regulator that how can we use this at generator. Wiring Diagram Avr Genset from cfshopeecoid Avr voltage regulator wiring diagram wireless remote control car ata6613 lin uart c code simple transmitter and receiver project ata6662 ata6624 ata6623. 15 ohm Voltage Regulation 1 with 4 engine governing Voltage Build-up Residual voltage at AVR terminal.

22 - R230 AVR option 05 W min. 10 R230 Avr Wiring Diagram Pictures. - Remove the ST4 jumper.

Installation and operation manual egcp 2 engine generator control package 8406 120 150300 vac pt input 932 vdc. 32 - Settings The different settings made. Leroy Somer Voltage Regulator AEM110RE014 AVR.

Voltage 120 VAC 90 140 VAC 1 phase 2 wire 5060 Hz Output Voltage 100 VDC 120 VAC input Current Continuous 8A Intermittent 10A for 10 sec Resistance Min. And how it workselectrica.
